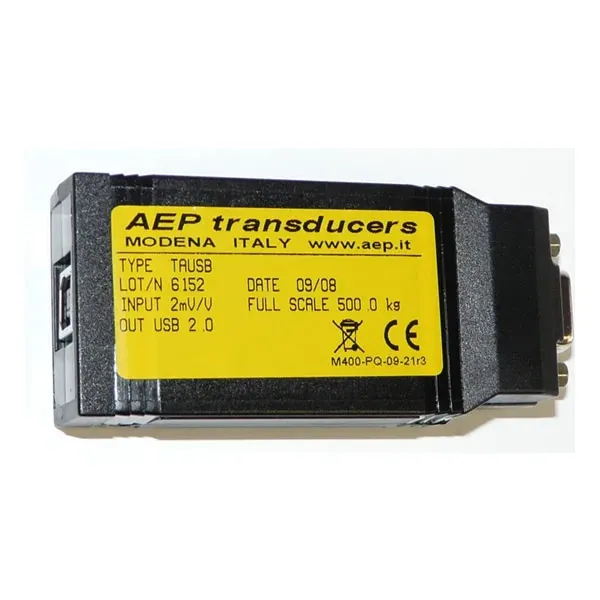

TAUSB

The transmitter makes simple and economical the transmission of data coming from a transducer to a PC. TAUSB has a maximum resolution of 20.000 divisions and transmits the data directly on-line USB 2.0. It is a very simple but complete instrument as it is self powered directly from the USB line and is ideal for use in a laboratory as a generic acquisition system leaving to the software on PCs the characterization of the parameters to which the transducer is connected. The transmitter is controlled by a microcontroller that processes the data sampled by a high resolution AD converter at a frequency up to 3000Hz and manages the USB communication. The transmitter continuously transmits the value in divisions according to a protocol highly optimized and easy to implement. Accuracy: 0,025% LOW COST

Through the USB line is possible to make the configuration of the transmitter parameters including: Digital Filter, Zero Operating mode: Standard / Peak. 3 standard versions are available: Input for load cells and dynamometers (standard) Input for pressure transducers and transmitters. (option) Input for potentiometers (option) The connection to transducers is achieved through a standard SUB-D 9-pin female connector. Complete with Software ACCESSORIES USB cable. DB9 connector to connect the sensors to the transmitter.
