Product Description
Load cell for the measurement of static and dynamic loads in COMPRESSION Nominal Load from 100 kg to 200 tons Class (OIML R60) C1, C2 and C3 Combined Error: 0,023% Output: 2mV/V On request
Low profile load cell suitable to work in hostile environments. High mechanical resistance Completely made of stainless steel Completely LASER welded Degree of protection IP68 Long term stability On request ATEX certificate (Zones 1 and 21) GAS and DUST ACCESSORIES
Calibration Report

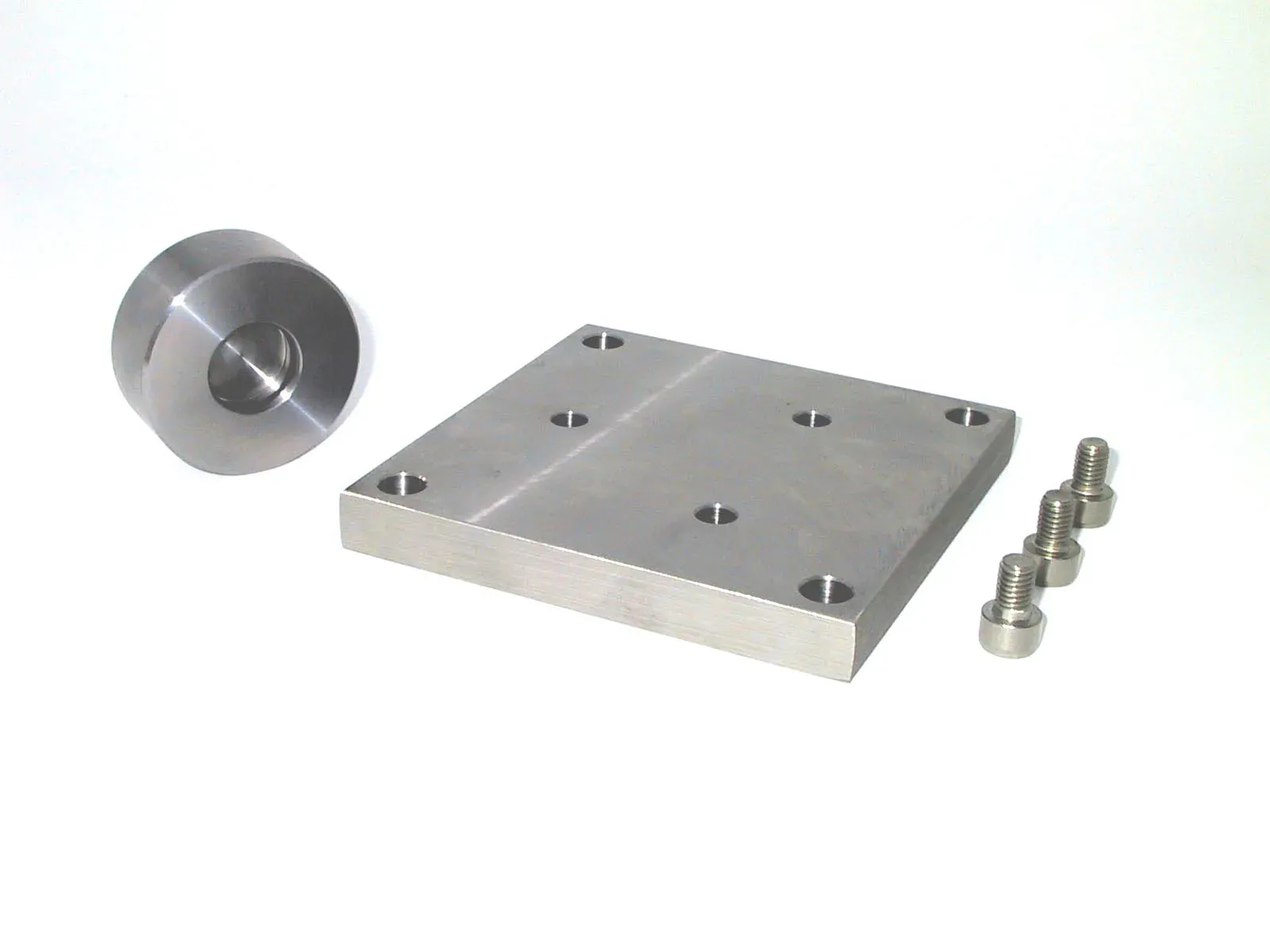

Loading Head (TIC)
Mounting Plate (PB)

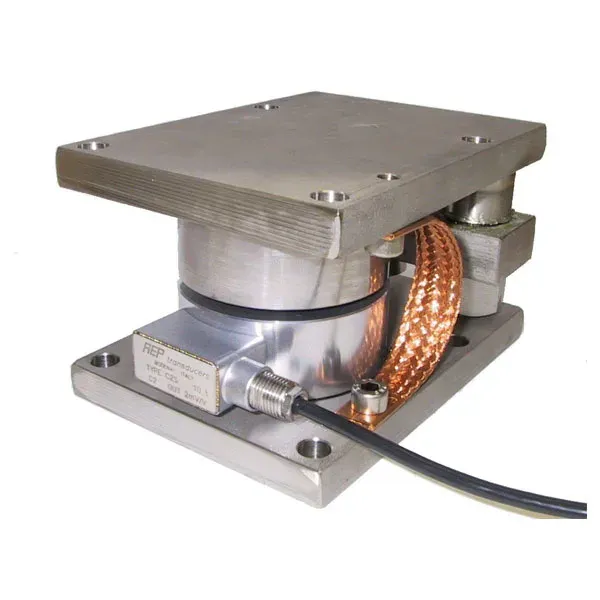

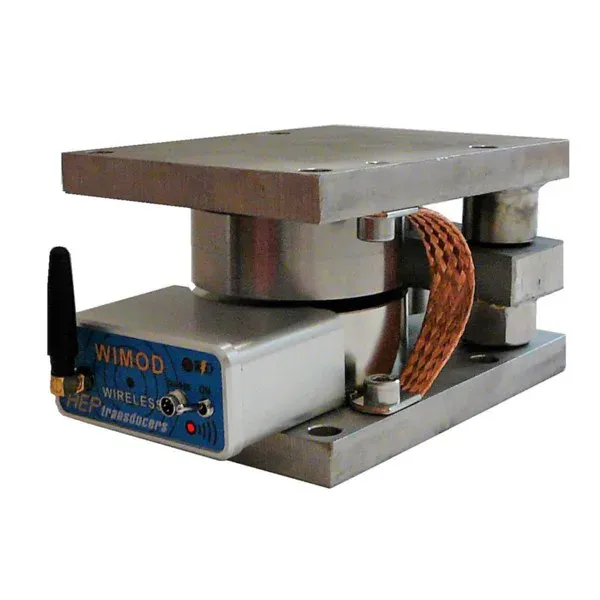

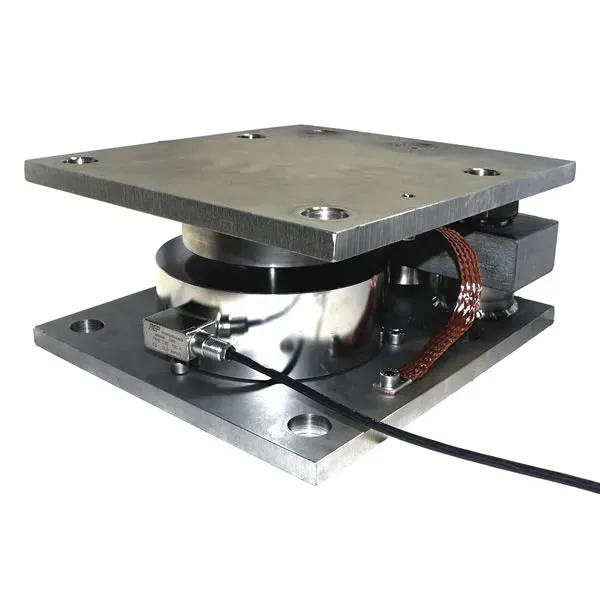

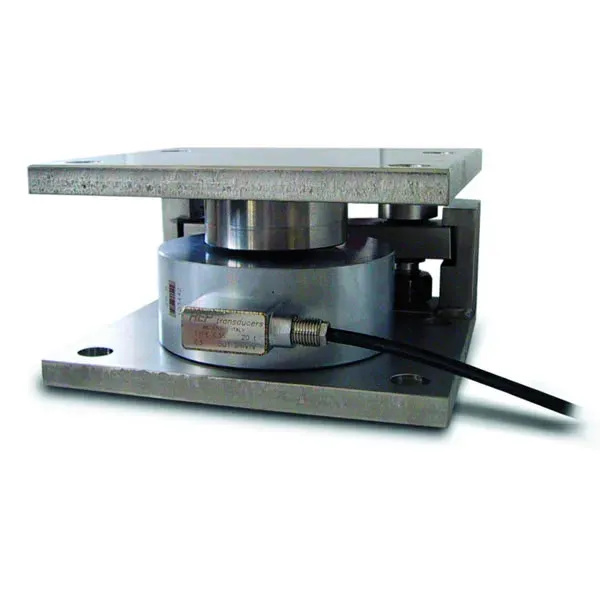

UPC WEIGHING UNIT for Load Cell model C2S and CBS Used in weighing tanks, silos and hoppers. Nominal loads from 100 kg to 100 tons Made of stainless steel AISI 304. Completely auto load self alignment and transverse shift compensation
Specifications
| • | Low profile load cell suitable to work in hostile environments. High mechanical resistance Completely made of stainless steel Completely LASER welded Degree of protection IP68 Long term stability |
| • | On request ATEX certificate (Zones 1 and 21) GAS and DUST |
| • | ACCESSORIES |
| • | Calibration Report |
| • | Loading Head (TIC) |
| • | Mounting Plate (PB) |
| • | WEIGHING UNIT for Load Cell model C2S and CBS Used in weighing tanks, silos and hoppers. Nominal loads from 100 kg to 100 tons Made of stainless steel AISI 304. Completely auto load self alignment and transverse shift compensation |
