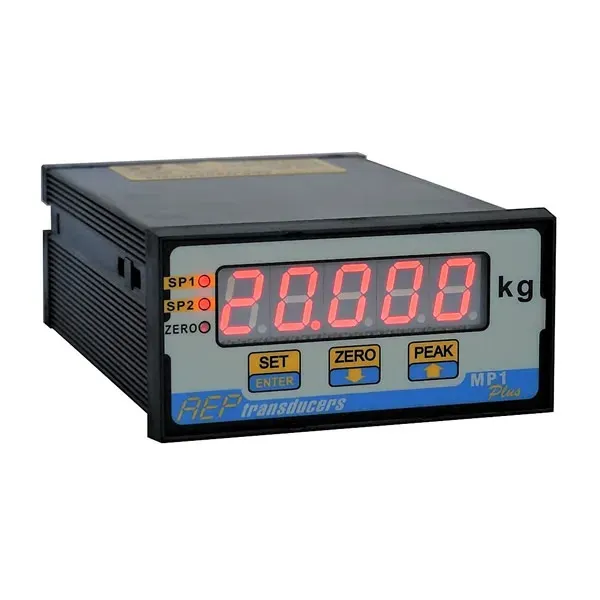

MP1PLUS

Panel digital indicator designed to be used in the modern static and dynamic measure systems in industrial activity, it can sample the signal up to a frequency of 1200Hz.Suitable for processing analogue signals coming from strain gauge based load cells and from pressure transmitters with amplified output, it enables to perform measurements with a long-term accuracy of 0.02% of full scale, with a resolution of ±20.000 divisions 2mV/V Suitable for measuring FORCE, WEIGHT, PRESSURE, DEPRESSION (vacuum), TORQUE and DISPLACEMENT.

DIN 43750 case2 SET POINTS: with relay output, activation and deactivation thresholds (hysteresis) programmable.Digital FILTER: it allows to attenuate the measurement oscillations in dynamic applications.RESOLUTION: it allows to increase the measurement by definite steps.(1,2,5 ….).PEAK: programmable, it allows to detect measurement peaks in positive or negative field.ZERO key BLOCK: it allows to block the Zero key function by password. REMOTE INPUT digital: programmable by menu to perform a function to be chosen among Peak, Zero and Hold. ON REQUEST instrument can be provided with the ANALOGUE OUTPUT in voltage or in current programmable by menu. ACCESSORIES None available. MP1PLUS with press and pressure transducers MP1PLUS with press, load cell and displacement transduces MP1PLUS with tank MP1PLUS with torque transducers
