Product Description
The digital transmitter with integrated display is designed to connect and manage measuring sensors directly from the PLC via analogue, serial or fieldbus inputs. Available inputs: ±2mV/V, ±3 mV/V, 4-20 mA, +/-10 Volt Available field buses: RS232C, RS485 Modbus Profinet Profibus Ethernet IP Ethernet TCP Ethercat CANOpen Ideal for performing WEIGHT, FORCE, PRESSURE, TORQUE and DISPLACEMENT measurements.

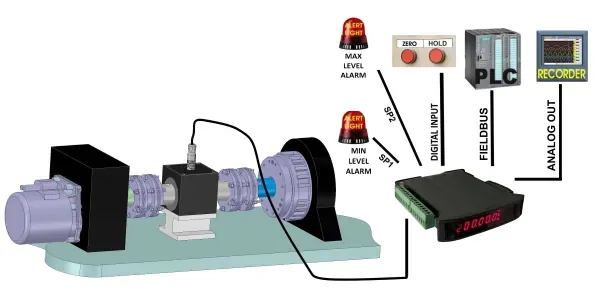

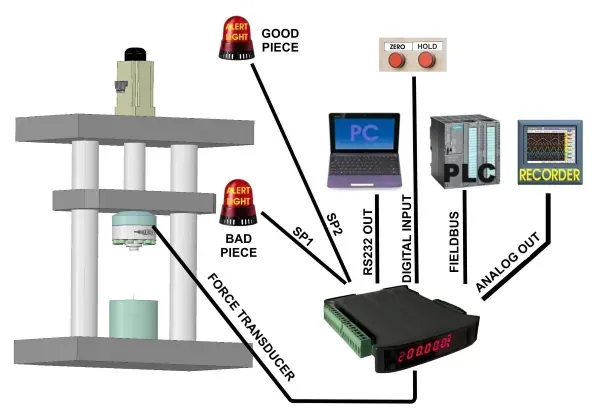

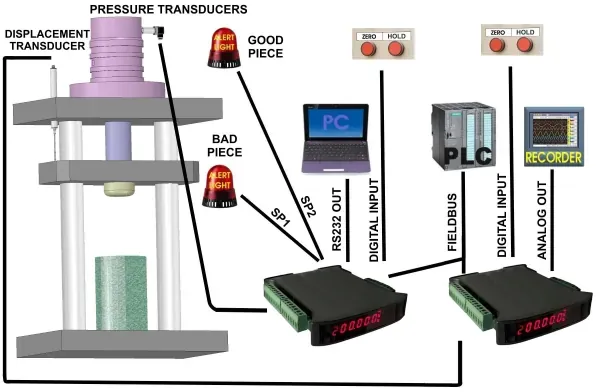

TYPICAL APPLICATIONS: Automatic weighing and small dosing systems. Level control systems on tanks, silos and hoppers. Integrated measuring systems on test benches. Integrated measuring systems in automatic processes. Industrial process control systems. Automatic testing and quality control systems in production lines. Control of measurements on board material testing machines. Ideal for carrying out measurements of WEIGHT, FORCE, PRESSURE, TORQUE and DISPLACEMENT. It is possible to transmit measurements from: Load cells. Force transducers. Pressure transducers and transmitters. Torque transducers. Displacement transducers.
Specifications
| • | Automatic weighing and small dosing systems. |
| • | Level control systems on tanks, silos and hoppers. |
| • | Integrated measuring systems on test benches. |
| • | Integrated measuring systems in automatic processes. |
| • | Industrial process control systems. |
| • | Automatic testing and quality control systems in production lines. |
| • | Control of measurements on board material testing machines. |
| • | Ideal for carrying out measurements of WEIGHT, FORCE, PRESSURE, TORQUE and DISPLACEMENT. |
| • | It is possible to transmit measurements from: |
| • | Load cells. Force transducers. Pressure transducers and transmitters. Torque transducers. Displacement transducers. |
| • |
