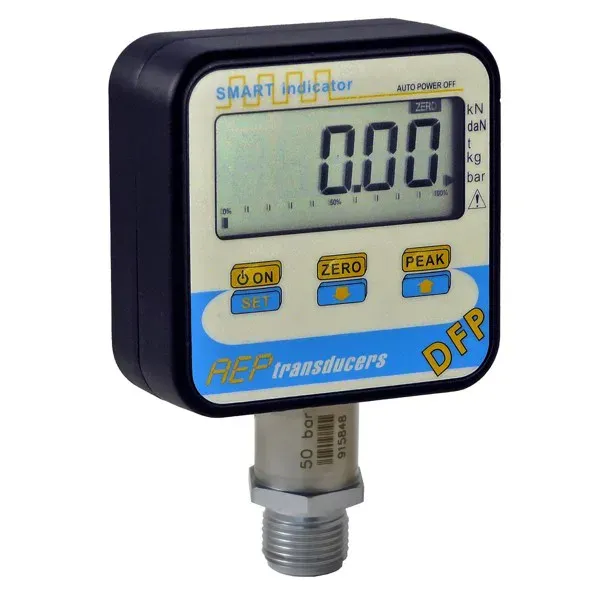

DFP

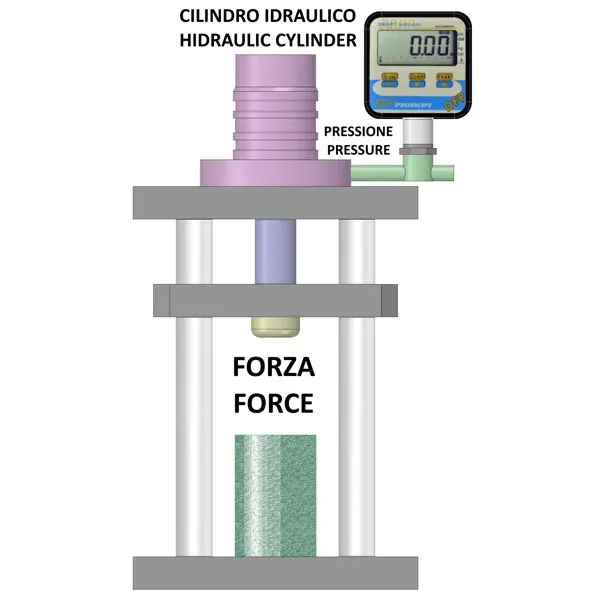

RELATIVE pressures from 10 bar to 3000 bar Relative VACUUM measure -1 bar TEMPERATURE measures from 0 to 50°C Measurement of the temperature of the fluid linearity and hysteresis 0.10% Possibility to measure both the PRESSURE and the push FORCE generated by a cylinder

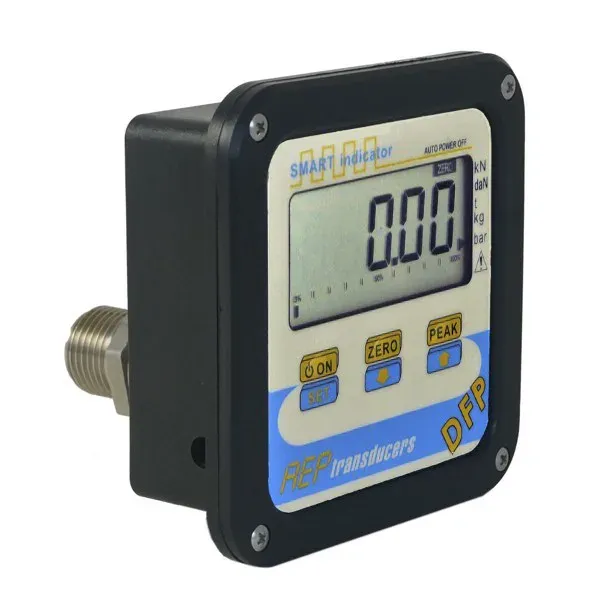

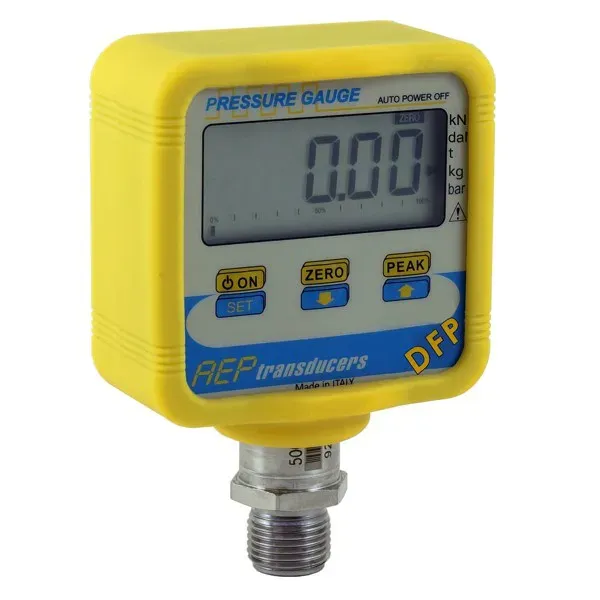

Metal case Process coupling 1/2″Gas male The sensitive part in contact with pressure is entirely made of 17-4 PH stainless steel resistant to corrosion Protection class IP65 Non-rechargeable batteries with 1 year autonomy Programmable resolution, digital filter and measurement units ZERO and PEAK functions (Active in PRESSURE and VACUUM) Analog pressure indication always active (bar graph) Conversion into units of measurement: bar, kg, t, daN, kN External power supply (option) Serial output RS232C (option) Built-in case (option) ACCESSORIES Shock-resistant silicon COVER External power suply RS232C cable RS232C-USB adapter Calibration report ACCREDIA certificate Carrying case Software WinTEST1 Quick analyzer Quick analyzer Light Software that works directly with the pressure gauge and supports the operator in the various test functions like, analysis, over time monitoring, data storage, DATA LOGGER management, transferring data to Microsoft Excel and so on.
