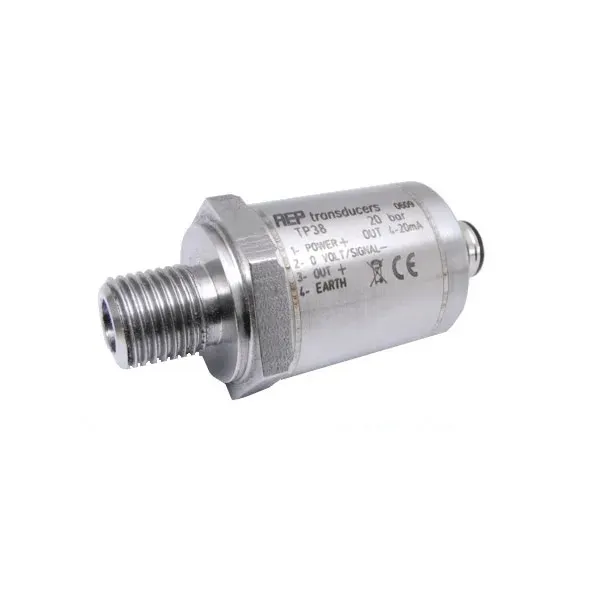

TP38

Pressure transmitters for RELATIVE, ABSOLUTE and VACUUM measures Nominal pressures from 100 mbar to 2000 bar AMPLIFIED outputs: 4-20mA, 0.5-10.5V and 0.5-5.5Volt Linearity and hysteresis 0.25%, 0.50% or 1% LOW COST

The pressure transmitters of this series are characterized by high reliability and long-term stability High mechanical strength, suitable for dynamic applications The sensitive part in contact with pressure, is entirely made of 17-4 PH stainless steel resistant to corrosion Protection class IP65 Process coupling 1/4″ GAS Male Connector standard M12 Internal adjustment of ZERO Power supply 12 to 24 Vdc ACCESSORIES Calibration Report ACCREDIA certificate
