รายละเอียดสินค้า

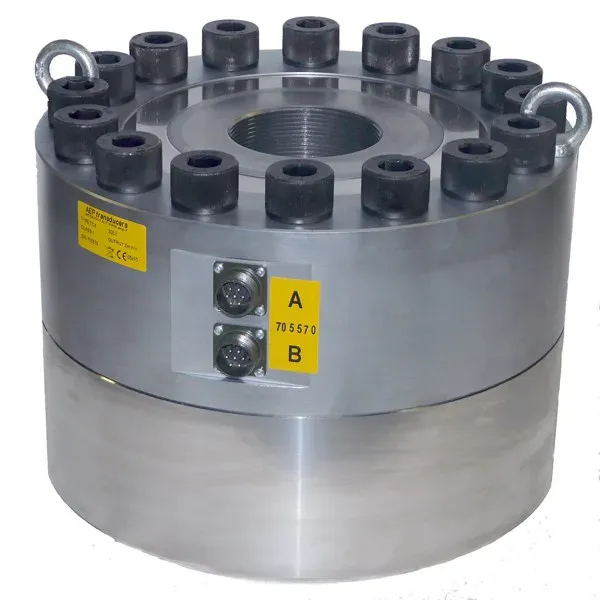

Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION Nominal Load from 2.5 kN to 5 MN Class (ISO 376) 1 Linearity and Hysteresis 0,05% Output: 2mV/V on request
Force transducer suitable for material testing machines and test benches in general. High mechanical resistance. Completely made of stainless steel. Completely LASER welded. Degree of protection IP67. Long term stability ACCESSORIES
Calibration Report COMPRESSION Calibration Report TENSION ACCREDIA certificate COMPRESSION ACCREDIA certificate TENSION ACCREDIA certificate BIDIRECTIONAL
For COMPRESSION applications: Loading head (TIC) Spherical loading head (TC) Mounting plate (PB) For TRACTION applications: n. 2 Knuckle joints (ACCEM) Mounting plate (PB)
Force transducer assembly to the base.
TC4 WIMOD
TC4 300t
Specifications
| • | Force transducer suitable for material testing machines and test benches in general. High mechanical resistance. Completely made of stainless steel. Completely LASER welded. Degree of protection IP67. Long term stability |
| • | ACCESSORIES |
| • | Calibration Report COMPRESSION |
| • | Calibration Report TENSION |
| • | ACCREDIA certificate COMPRESSION |
| • | ACCREDIA certificate TENSION |
| • | ACCREDIA certificate BIDIRECTIONAL |
| • | Force transducer assembly to the base. |
| • | TC4 WIMOD |
| • | TC4 300t |
| • | Loading head (TIC) Spherical loading head (TC) Mounting plate (PB) |
| • | n. 2 Knuckle joints (ACCEM) Mounting plate (PB) |
