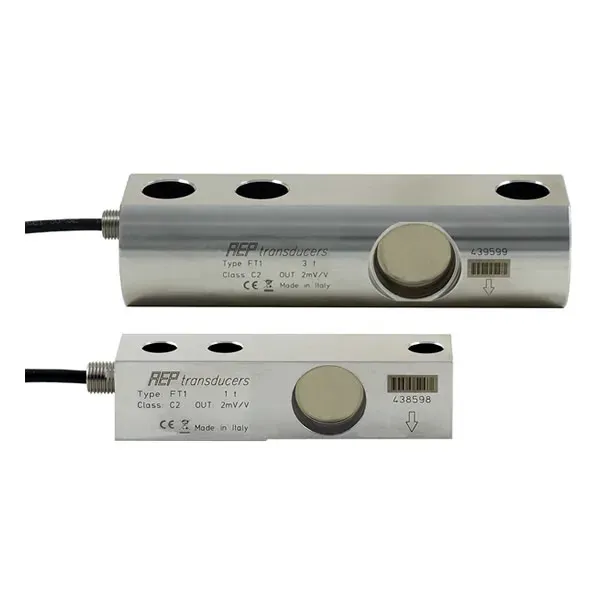

FT1

SHEAR BEAM load cell for the measurement of static and dynamic loads Nominal Load from 350 kg to 7,5 tons Class (OIML R60) C2 and C3 Combined Error: 0,020% Output: 2mV/V

Load cell suitable to work in hostile environments High mechanical resistance Completely made of stainless steel Completely LASER welded Degree of protection IP68 Long term stability APPROVED version on request On request ATEX certificate (Zones 1 and 21) GAS and DUST ACCESSORIES Calibration Report UPFT1 WEIGHING UNIT for Load Cell model FT1 Used in weighing tanks, silos and hoppers Nominal loads from 350 kg to 5 tons Made of stainless steel AISI 304 The weighing unit is provided with an ELASTOMER bearing to preserve excellent features even in event of settlings, thermal dilation, positioning error, transverse thrusts and deformations or vibrations of structures. SG4: Junction box to perform the parallel of multiple load cells. TA4: Analog Transmitter to connect several load cells in parallel and remote transmitting the measuring signal voltage (± 10V) or current (4-20 mA) to the PLC or more advanced systems.
