SIKA

Click the image to view full size

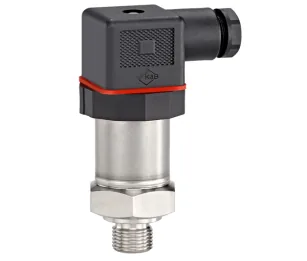

Absolute pressure Transmitter DSP

21,800THB

Brand: SIKA
Model: DSP
Measuring range: 1. 0 ~ 0.1 barA / 2. 0 ~ 0.16 barA / 3. 0 ~ 0.25 barA / 4. 0 ~ 0.4 barA / 5. 0 ~ 0.6 barA / 6. 0 ~ 0.6 barA / 7. 0 ~ 1.0 barA / 8. 0 ~ 1.6 barA / 9. 0 ~ 2.5 barA / 10. 0 ~ 4 barA / 11. 0 ~ 6 barA / 12. 0 ~ 10 barA / 13. 0 ~ 16 barA / 14. 0 ~ 25 barA / 15.

Quality

Warranty

Support

Product Description

Absolute pressure Transmitter by SIKA model DSP made in Germany

Specifications

Connection: 1. G¼ A / 2. DIN / 3. Flange
Material: - Stainless steel 1.4404 / Diaphragm / - FKM (Fluro-elastomer) / Medium temperature / -40 ~ 100 ºC / (others on request) / ต้องการอุณหภูมิเพิ่มสั่งได้ / Protection / IP65
Range: 1. 0 ~ 0.1 barA / 2. 0 ~ 0.16 barA / 3. 0 ~ 0.25 barA / 4. 0 ~ 0.4 barA / 5. 0 ~ 0.6 barA / 6. 0 ~ 0.6 barA / 7. 0 ~ 1.0 barA / 8. 0 ~ 1.6 barA / 9. 0 ~ 2.5 barA / 10. 0 ~ 4 barA / 11. 0 ~ 6 barA / 12. 0 ~ 10 barA / 13. 0 ~ 16 barA / 14. 0 ~ 25 barA / 15. 0 ~ 40 barA / 16. 0 ~ 60 barA / 17. 0 ~ 100 barA / 18. 0 ~ 160 barA / 20. 0 ~ 250 barA / 21. 0 ~ 400 barA / 22. 0 ~ 600 barA
Output: 1. 4 ~ 20 mA / 2. 0 ~ 5 Vdc / 3. 0 ~ 10 Vdc
Power supply: 11 ~ 33 Vdc / (2-wire), (3-wire)
Accuracy: ±0.25 % of FS.

Prices are subject to change. Please contact our sales team for a current quotation.
