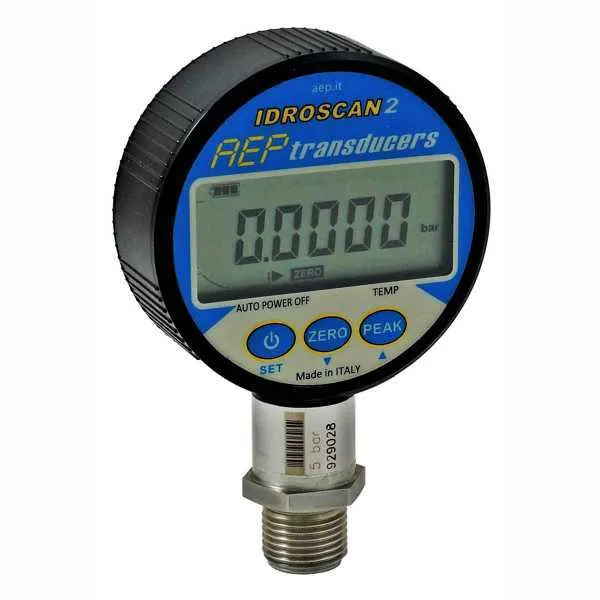

IDROSCAN2

RELATIVE pressures from 1 bar to 3000 bar Relative VACUUM measurement -1 bar TEMPERATURE measurement from 0 to 50 ° C Fluid temperature measurement Linearity and Hysteresis 0.20% DATA LOGGER (option) programmable to record the PRESSURE and TEMPERATURE trend over time Replaces card recorders. ABS container.

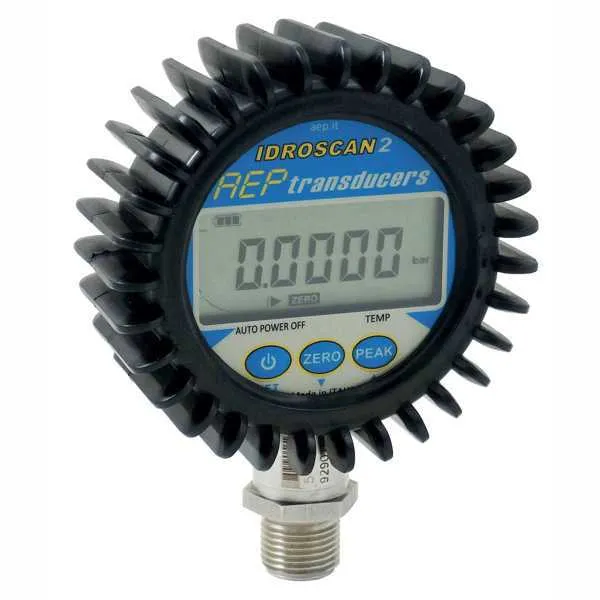

ABS case Process coupling 1/2″Gas male The sensitive part in contact with pressure is entirely made of 17-4 PH stainless steel resistant to corrosion Protection class IP65 Non-rechargeable batteries with 1 year autonomy Programmable resolution, digital filter ZERO and PEAK functions (Active in PRESSURE and VACUUM) External power supply (option) USB output (option) ACCESSORIES Shock-resistant silicon COVER External power suply USB cable Calibration report ACCREDIA certificate Carrying case Software Quick analyzer Quick analyzer Light Software that works directly with the pressure gauge and supports the operator in the various test functions like, analysis, over time monitoring, data storage, DATA LOGGER management, transferring data to Microsoft Excel and so on. GPM Manual pressure generators used to compare the measurements between the sample pressure gauge and the instrument calibration. Ideal for performing calibration and metrological confirmation of pressure gauges, pressure transducers, pressure transmitters and pressure switches.
