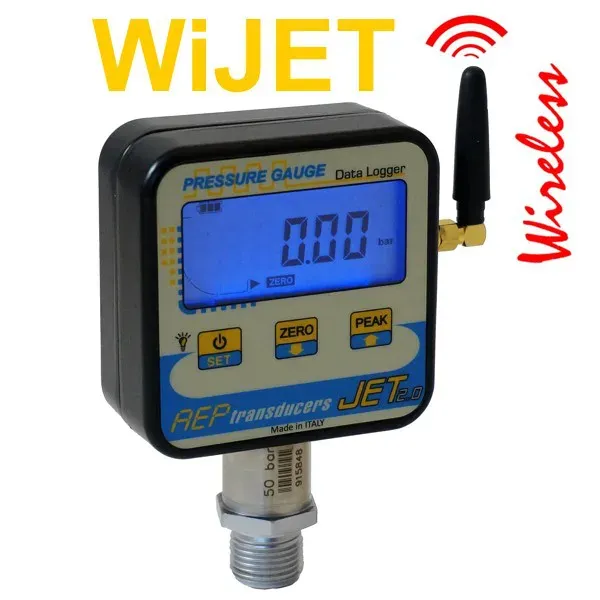

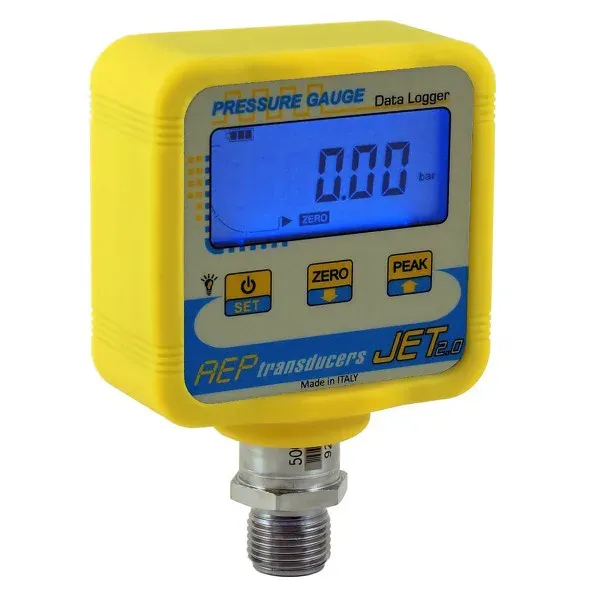

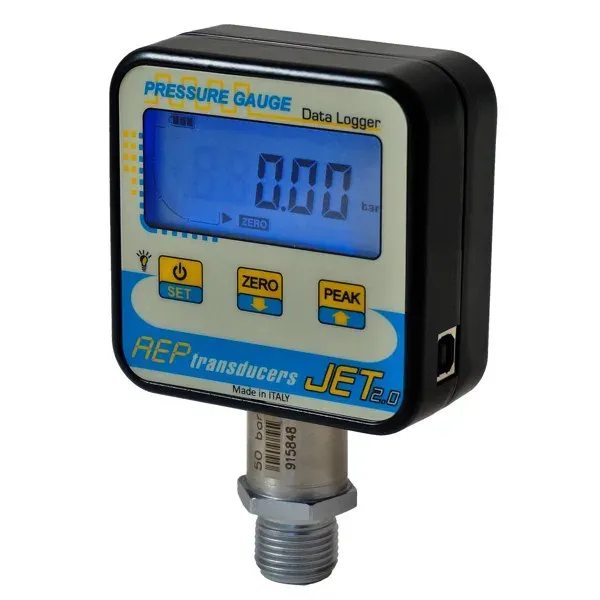

JET

RELATIVE pressures from 100 mbar to 3000 bar ABSOLUTE pressures from 1 bar to 10 bar Relative VACUUM measure -1 bar TEMPERATURE measures from 0 to 50 °C linearity and hysteresis 0.20% STANDARD version linearity and hysteresis 0.10% high accuracy Backlit display DATA LOGGER programmable to record the trend of PRESSURE and TEMPERATURE over time. Replaces chart recorders. WIRELESS transmission Max. distance 100 m in free area

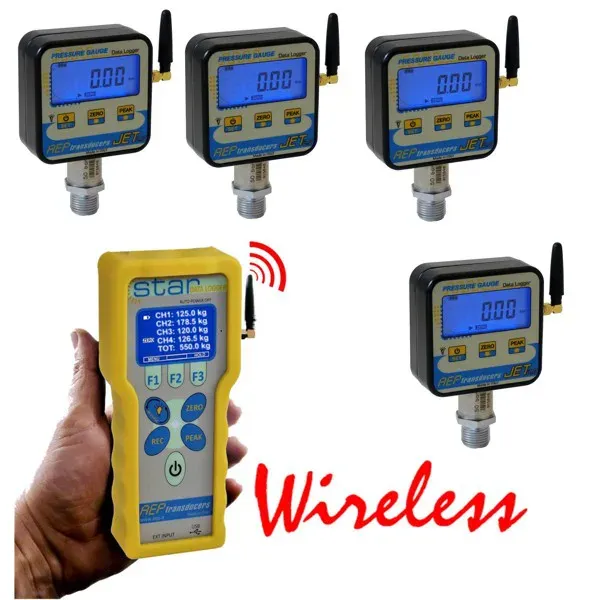

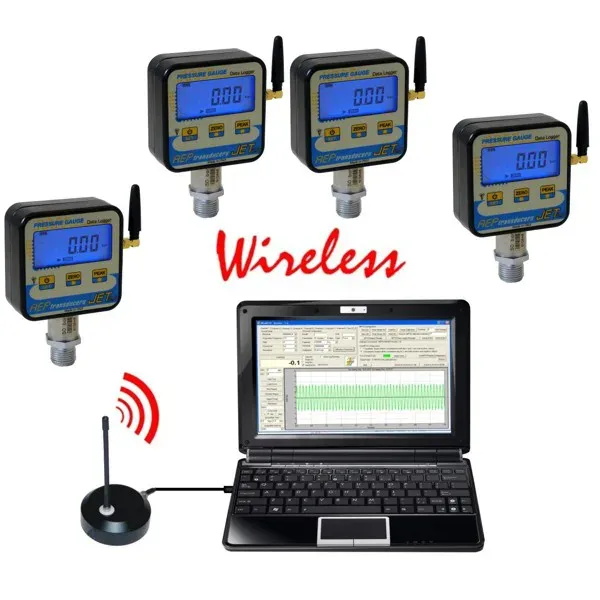

Metal case Process coupling 1/2″Gas male The sensitive part in contact with pressure is entirely made of 17-4 PH stainless steel resistant to corrosion Protection class IP40 Rechargeable battery with 3 months autonomy Programmable resolution, digital filter and measurement units ZERO and PEAK functions (Active in PRESSURE and VACUUM) Analog pressure indication always active (bar graph) Complete with power supply and USB cable Contact control for pressure switch Test (option) WIRELESS transmission maximum distance 100m in free area (option) ACCESSORIES Calibration report ACCREDIA certificate Carrying case Software Quick analyzer Light Software that works directly with the pressure gauge and supports the operator in the various test functions like, analysis, over time monitoring, data storage, DATA LOGGER management, transferring data to Microsoft Excel and so on. WiMP2plus: digital panel indicator with wireless receiver to remotely view the pressure transmitted by 1, 2, 3 or 4 WiJET pressure gauges. WinWIMOD: Software which can connect to PC up to a maximum of 32 pressure gauges type WIJET WiSTAR: Handheld digital indicator whith wireless receiver for view at a distance the pressure transmitted from 1 to 4 pressure gauges type WIJET RS232 receiver that enables to connect directly to the pressure gauge WIJET to PLC
