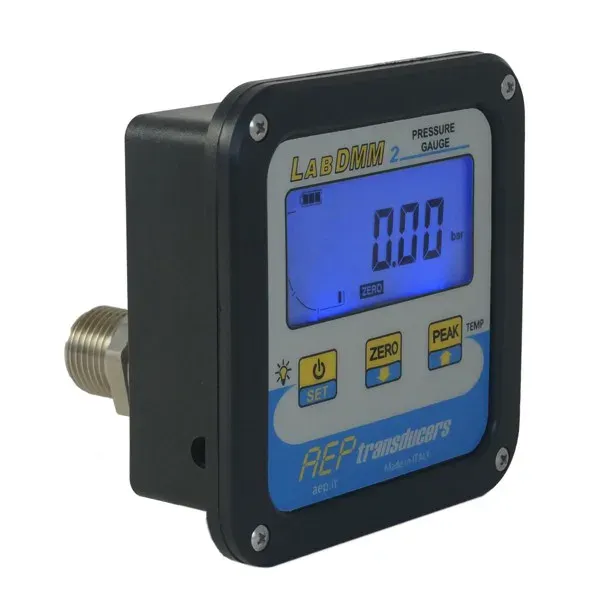

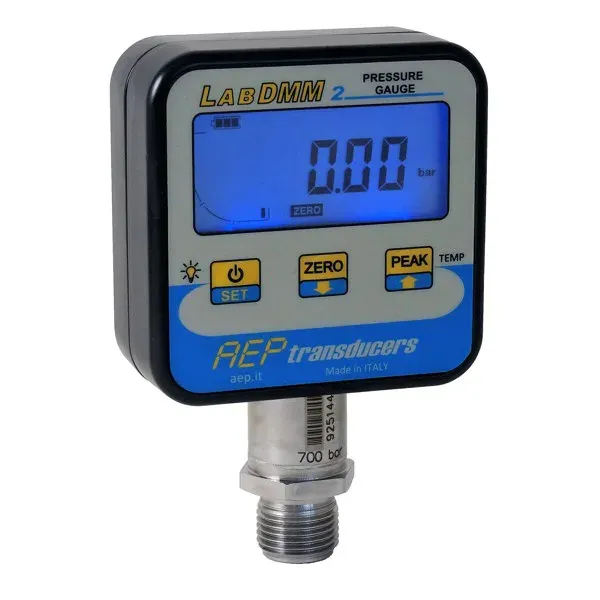

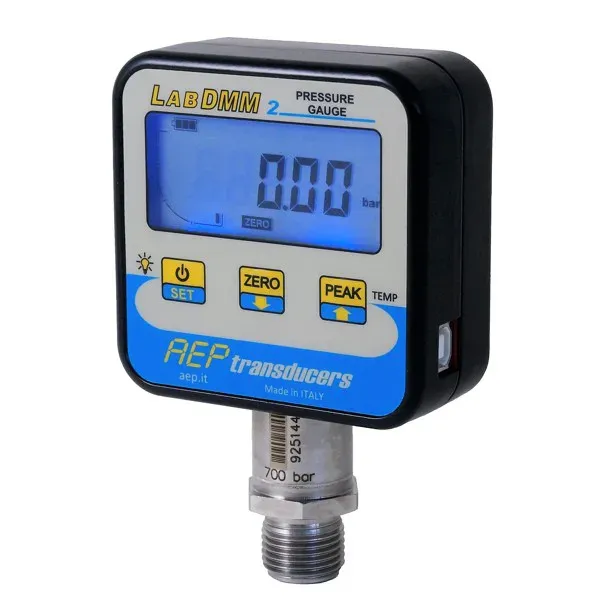

LABDMM2

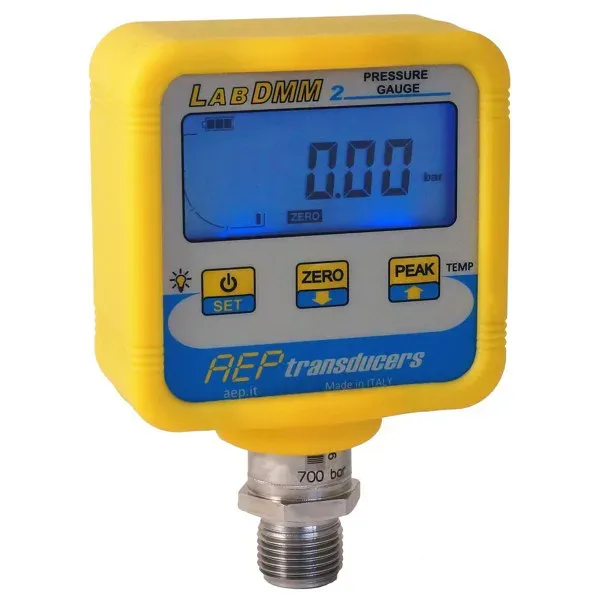

RELATIVE pressures from 100 mbar to 3000 bar ABSOLUTE pressures from 1 bar to 10 bar Relative VACUUM measure -1 bar linearity and hysteresis 0.05 % HIGH ACCURACY High mechanical strength Suitable for dynamic and static applications Shock resistant silicone COVER

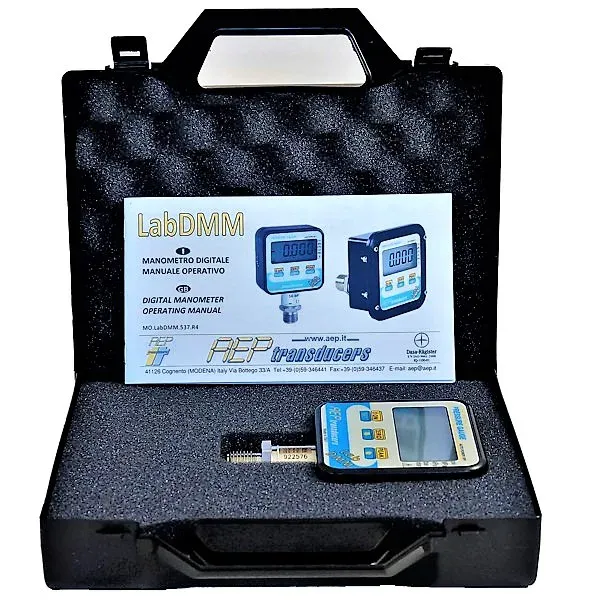

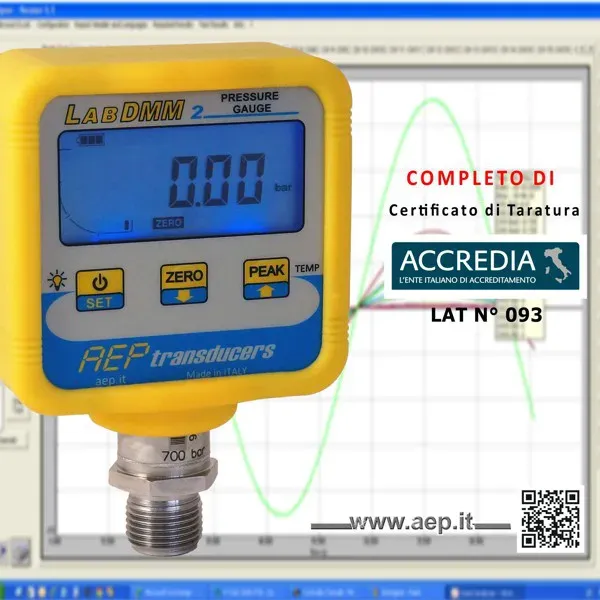

Shock-resistant silicone COVER Metal housing Stainless steel sensor Process connection 1/2 “Gas male IP40 protection Rechargeable internal batteries with 50 hours autonomy (continuous operation) Programmable resolution, digital filter and measuring units Zero and peak functions (positive and vacuum pressure) Analogue pressure display always on (bar graph) Complete with ACCREDIA certificate External power supply (option) RS232C serial output (option) Built-in container (option) ACCESSORIES External power supply RS232C cable RS232C-USB adapter TRANSPORT CASE Software Quick analyzer Quick analyzer Light PresKAL Application software that interfaces directly with the gauge and supports the operator in the various functions of testing, analysis, monitoring over time, data storage, DATA LOGGER management, transfer of measurements to Microsoft Excel, etc… Software PresKAL Application software for calibrating pressure transducer gauges, vacuum and pressure switches using digital sample gauges. The calibration procedure is carried out in accordance with EA Standard 10-17. The evaluation of the calibration uncertainty is carried out according to the requirements of UNI CEI ENV 13005. GPM Manual pressure generators used to compare the measurements between the sample pressure gauge and the instrument calibration. Ideal for performing calibration and metrological confirmation of pressure gauges, pressure transducers, pressure transmitters and pressure switches.
