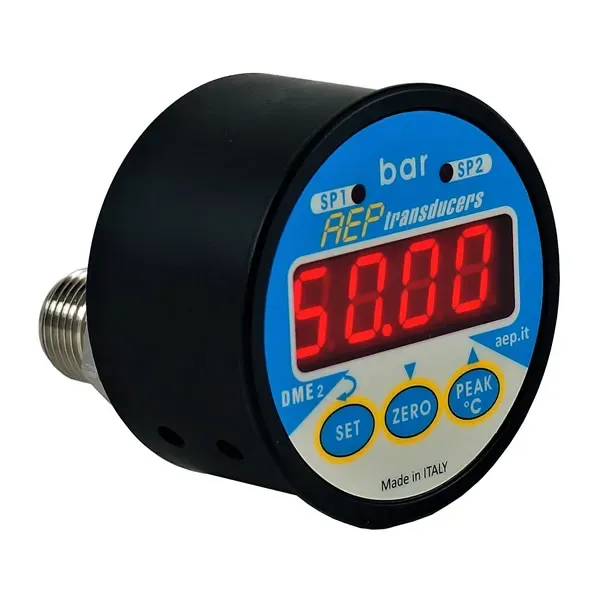

DME2

RELATIVE pressures from 1 bar to 3000 bar Relative VACUUM measure -1 bar TEMPERATURE measures from 0 to 70°C linearity and hysteresis 0.20% No. 2 SET POINT programmable with output relays High mechanical strength Suitable for dynamic and static applications

Metal case Process coupling 1/2″Gas male The sensitive part in contact with pressure is entirely made of 17-4 PH stainless steel resistant to corrosion Protection class IP65 front panel ZERO and PEAK functions (Active in PRESSURE and VACUUM) External power supply 24Vdc OPTION External power supply 12Vdc 4-20mA or 10Volt analogue output VACUUM ACCESSORIES External power suply Calibration report ACCREDIA certificate
