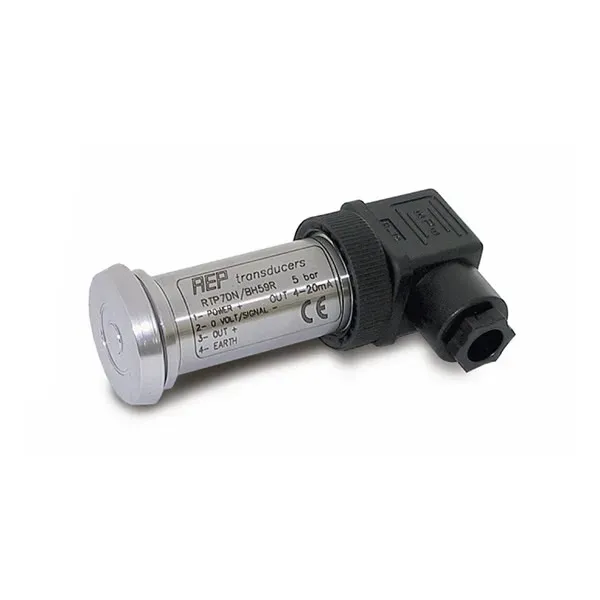

TP7DN

Pressure transmitters for RELATIVE, ABSOLUTE and VACUUM measures Nominal pressures from 1 bar to 50 bar AMPLIFIED outputs: 4-20mA, 10V or 5Volt Linearity and hysteresis 0,50% PROTRUDING DIAPHRAGM

Pressure transmitters belonging to TP7DN series, born to solve problems in food industrial sectors, are now commonly used in those productive processes where pressure or level measurements of dense substances are required. Protruding diaphragm enable to perform an accurate cleaning of the sensor and to prevent from forming of residuals on the measuring area. The pressure transmitters of this series are characterized by high reliability and long-term stability. High mechanical strength, suitable for dynamic applications. The sensitive part in contact with pressure, is entirely made of 17-4 PH stainless steel resistant to corrosion. Protection class IP65 Process coupling DN20 Connector standard DIN 43650 Internal adjustment of ZERO Power supply 12 to 24 Vdc ACCESSORIES Calibration Report ACCREDIA certificate
