Product Description

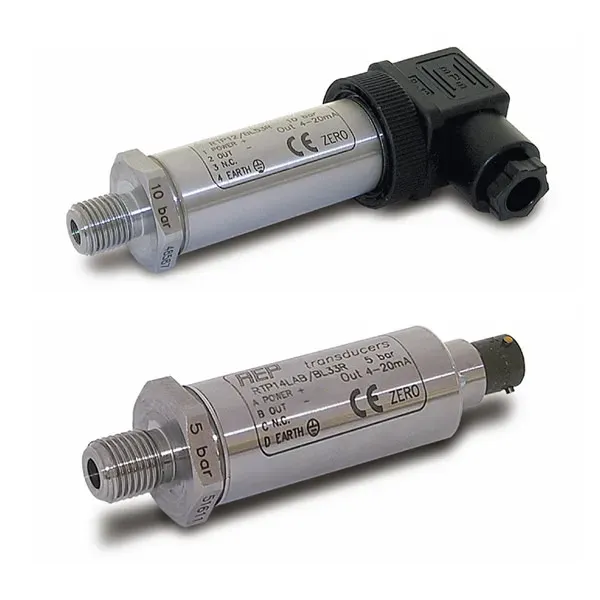

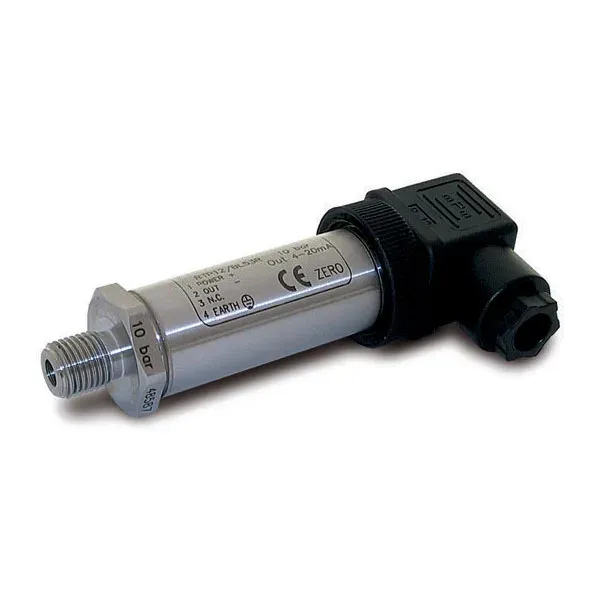

Pressure transmitters for RELATIVE, ABSOLUTE and VACUUM measures Nominal pressures from 100 mbar to 2000 bar AMPLIFIED outputs: 4-20mA, 10V or 5Volt TP14 Linearity and hysteresis 0,10% LabTP14 Linearity and hysteresis 0,05%
The pressure transmitters of this series are characterized by high reliability and long-term stability High mechanical strength, suitable for dynamic applications The sensitive part in contact with pressure, is entirely made of 17-4 PH stainless steel resistant to corrosion Protection class IP65 Process coupling 1/4″ GAS Male Connector standard DIN 43650 Internal adjustment of ZERO Power supply 12 to 24 Vdc ACCESSORIES
Calibration Report
ACCREDIA certificate
Specifications
| • | ACCESSORIES |
| • | Calibration Report |
| • | ACCREDIA certificate |
