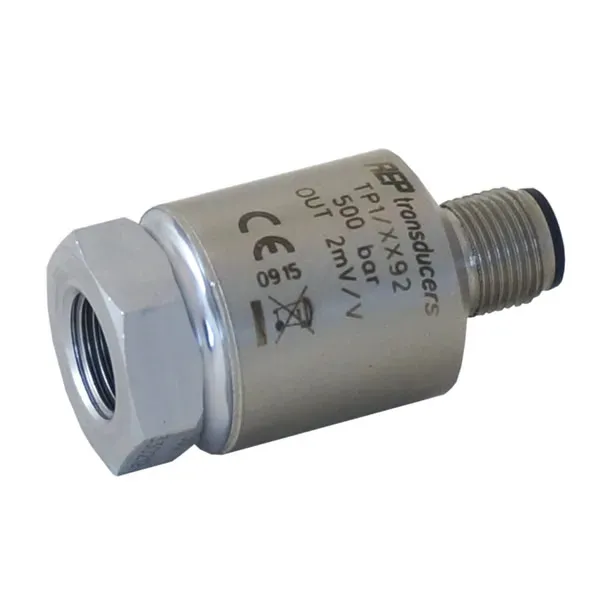

TP1

Pressure transducers for RELATIVE and ABSOLUTE measures Nominal pressures from 10 bar to 700 bar Linearity and hysteresis 0,20% TP1 standard output 2mV/V TP1A amplified ouput 0,5-5,5 Volt

The pressure transmitters of this series are characterized by high reliability and long-term stability. High mechanical strength, suitable for dynamic applications The sensitive part in contact with pressure, is entirely made of 17-4 PH stainless steel resistant to corrosion Protection class IP67 Process coupling 1/4″ GAS Female Connector standard M12 ACCESSORIES Calibration Report ACCREDIA certificate
