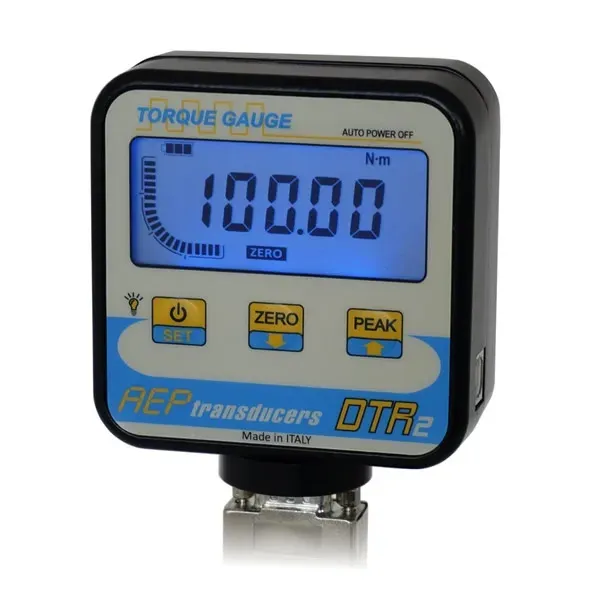

DTR2

NEW PERFORMANCES Hand held digital indicator, totally autonomous and with input for strain gauge based torque transducers. It is ideal to be used in the most modern static and dynamic measurement systems. With 0,02% accuracy makes it possible to be used use in quality systems as first or second line sample, periodically calibrated by a calibration centre (ACCREDIA in italy).

The indicator is provided with a programming menu which permits to choose different resolution and digital filter, according to measurements to be performed. The display also shows an analogue indication bar for pressure, that is still on, even in programming menu. Main features: AUTONOMY: 80 HOURS WTHOUT RECHARGE BATTERY RECHARGE TROUGH USB PORT LCD DISPLAY WITH BACKLIGHT 9 MEASUREMENT UNIT PROGRAMMABLE RESOLUTION PROGRAMMABLE DIGITAL FILTER ZERO FUNCTION PEAK FUNCTION (clockwise and anticlockwise) FIRST PEAK FUNCTION AUTOMATIC AUTO RESET OF THE PEAK AUTO POWER OFF FUNCTION USB COMMUNICATION PORT KEY BLOCK FUNCTION INTERNAL DATALOGGER (option) INTERNAL CLOCK CALENDAR (option) RS232 COMMUNICATION PORT (option) DIGITAL CALIBRATION for both positive and negative field, to remove differences between readings for torque transducers in clockwise and anticlockwise direction. ACCESSORIES WinTEST1: Software for the connection of the instrument to a PC complete with DATA LOGGER and transfer of the measured values to an EXCEL file Serial cable RS232
