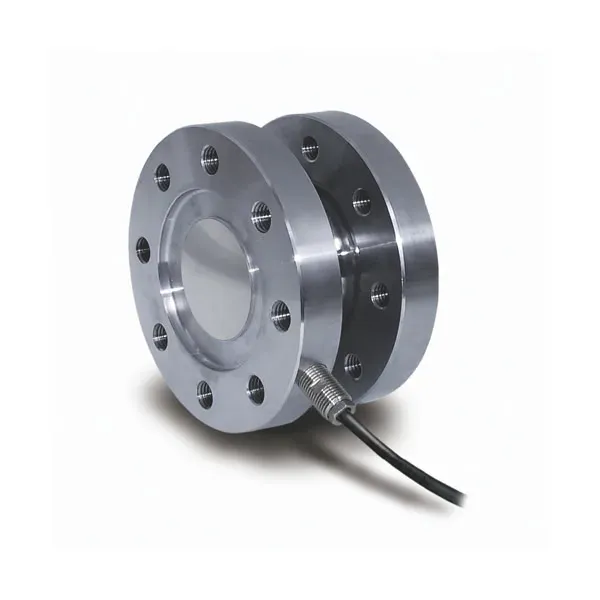

TRX

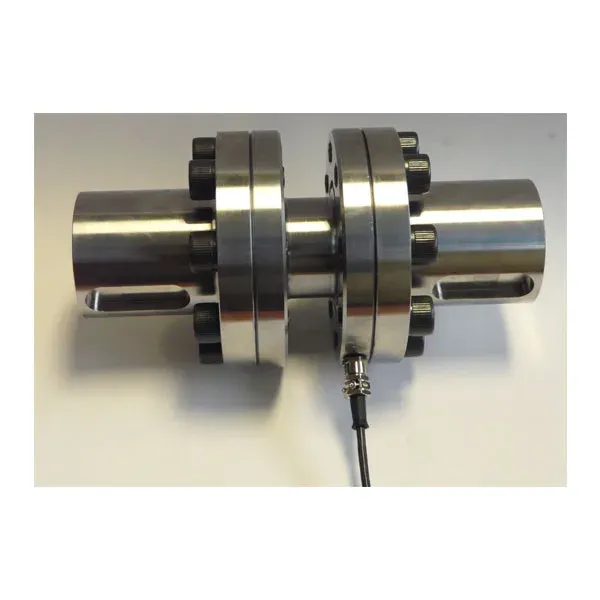

STATRIC torque transducers for the measurement in clockwise and anticlockwise direction FLANGE process coupling Nominal torque from 50 N•m to 5000 N•m Class (EURAMET cg-14) 0.05 and 0.1 Linearity and Hysteresis 0,03% Output: 1mV/V HIGH ACCURACY

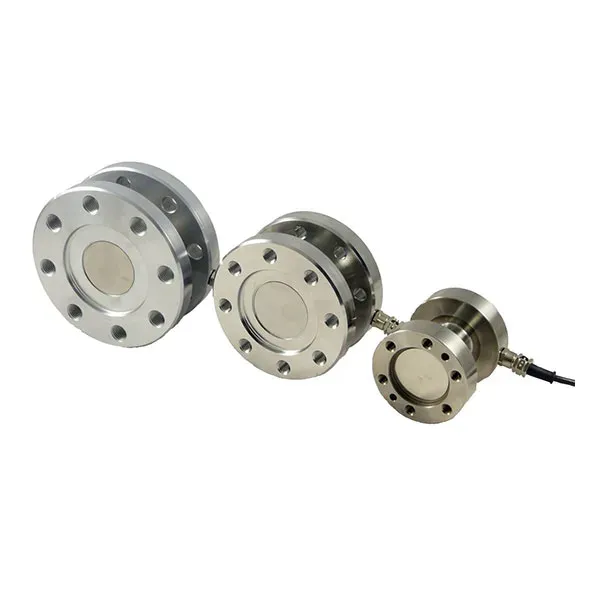

TRX series torque meter has been designed to perform torque measurements both in clockwise and anticlockwise direction with a high precision. Main fields of application vary from the industrial one on test benches and materials test machines to the most strictly metrological sectors such as first line samples for test and calibration laboratories, research bodies etc. .. Used also as transfer samples for evaluating the uncertainty of direct weights test benches or for comparison among the different reference National Institutes. Manufactured in two main accuracy classes 0.05 or 0.1 according to EURAMET cg-14 norm with a yearly drift lower than 0.003% Measurement stability is ensured even in wet and hard environments thanks to a high protection grade realized though LASER welding which guarantee the tightness. The monolithic body, entirely made in stainless steel, guarantees a high resistance to dynamic stress which can occur in both measurement directions. Torque meter is manufactured in 3 specific structures in order to cover a very wide range up to 5000 N•m. High stability given by monolithic structure High mechanical resistance Completely made of stainless steel Completely LASER welded Degree of protection IP67 Long term stability ACCESSORIES Calibration Report CLOCKWISE Calibration Report ANTICLOCKWISE ACCREDIA Certificate CLOCKWISE ACCREDIA certificate ANTICLOCKWISE
