Product Description

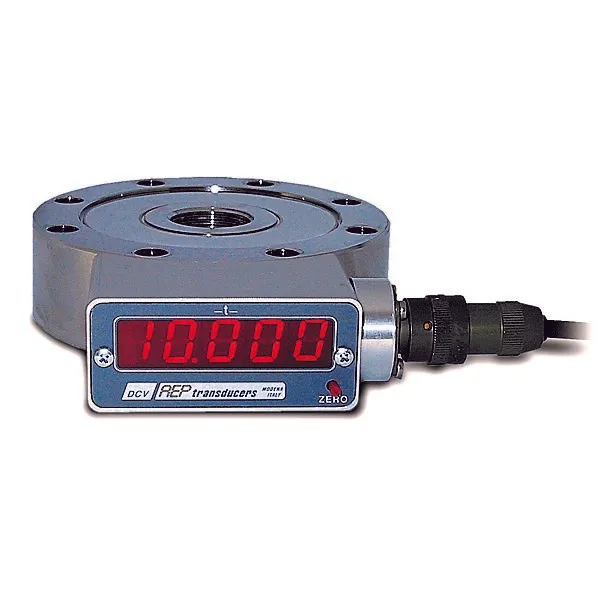

Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION Nominal Load from 10 kN to 1 MN Linearity and Hysteresis 0.05% INTEGRATED DIGITAL INDICATOR ZERO adjustment
Force transducer suitable for material testing machines and test benches in general. High mechanical resistance. Completely made of stainless steel. Completely LASER welded. Degree of protection IP40. Long term stability. ACCESSORIES
Calibration Report COMPRESSION Calibration Report TENSION ACCREDIA certificate COMPRESSION ACCREDIA certificate TENSION ACCREDIA certificate BIDIRECTIONAL
For COMPRESSION applications: Loading head (TIC) Spherical loading head (TC) Mounting plate (PB) For TRACTION applications: n. 2 Knuckle joints (ACCEM) Mounting plate (PB)
Force transducer assembly to the plate
Specifications
| • | Force transducer suitable for material testing machines and test benches in general. High mechanical resistance. Completely made of stainless steel. Completely LASER welded. Degree of protection IP40. Long term stability. |
| • | ACCESSORIES |
| • | Calibration Report COMPRESSION |
| • | Calibration Report TENSION |
| • | ACCREDIA certificate COMPRESSION |
| • | ACCREDIA certificate TENSION |
| • | ACCREDIA certificate BIDIRECTIONAL |
| • | Force transducer assembly to the plate |
| • | Loading head (TIC) Spherical loading head (TC) Mounting plate (PB) |
| • | n. 2 Knuckle joints (ACCEM) Mounting plate (PB) |
